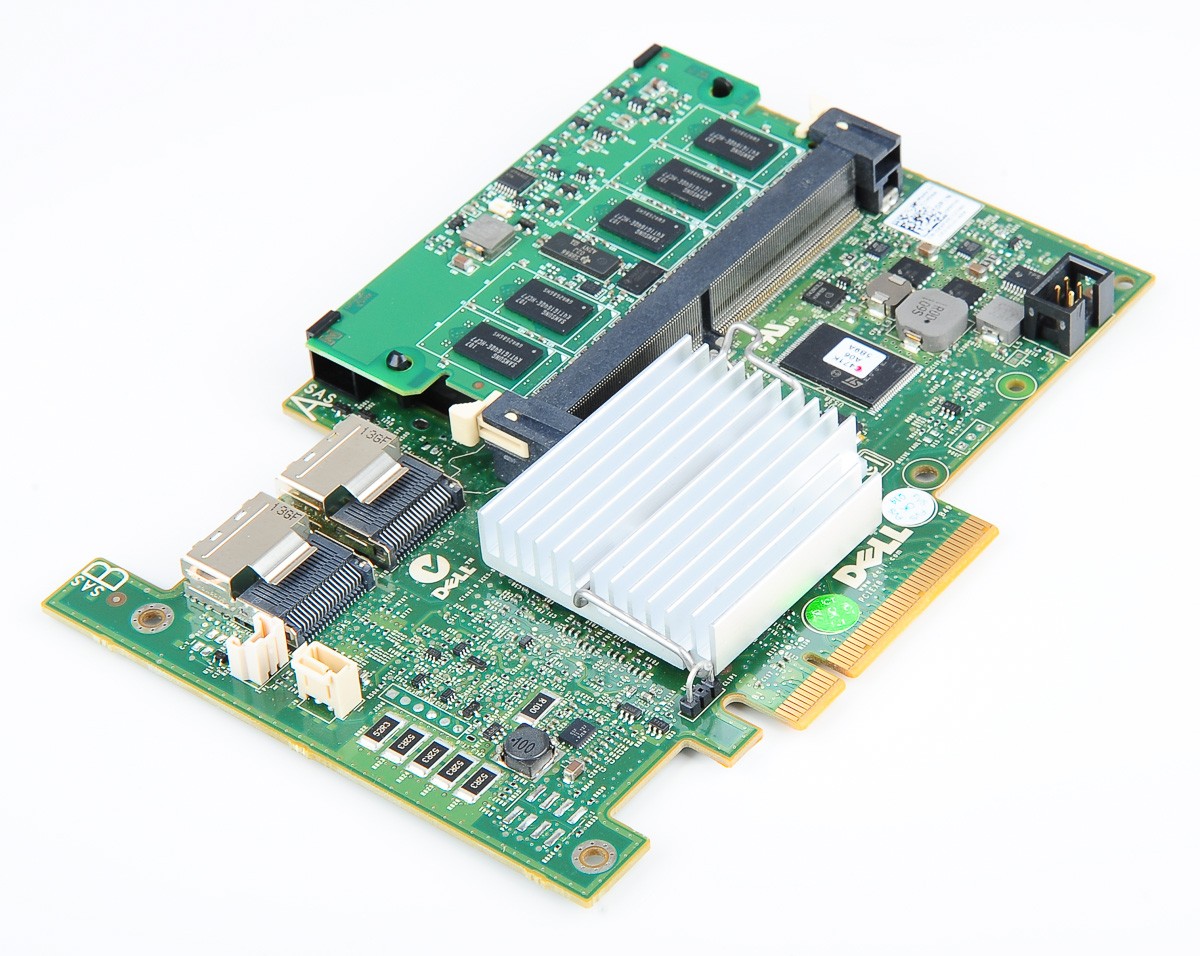

Dell PERC H700 6Gb/s SAS RAID Controller 1GB 0HCR2Y

Dell PowerEdge PERC H700 6Gb/s SAS RAID Controller 1GB

Dell Part Number: HCR2Y, 0HCR2Y, 39H7H

The Dell PERC H700 RAID controller has a PCIe interface and throughput of 6Gb/s. PERC H700 RAID controllers are compatible with select Dell PowerEdge servers. The H700 supports RAID 0, 1, 5, 6, 10, 50 and 60.

The H700 controller supports individual hard drives greater than 2 TB.

An open slot in a compatible Dell system is required to install the PERC H700 SAS RAID 1GB controller.

Tested, working condition, pulled from a working PowerEdge server.

Requires li-Ion rechargeable RAID battery (p/n: U8735), battery cable and SAS cables sold separately.

Specifications

• Support for RAID levels 0, 1, 5, 6, 10, 50  and 60.

• PCI-Express Gen 2.0 support
• 6Gb/s SAS (SAS 2.0) host interface
• Doubles throughput performance capability over 3Gb/s models
• Max hard drive support: 16 drives

• Backwards-compatible with 3Gb/s SAS (SAS 1.0) drives
• Cache Memory 1GB
• Support for individual (logical) hard drives greater than 2TB
• Support for self-encrypting hard drives (SED)
• Support for solid-state drives (SSD)

Dell Official PERC H700/H800 Documentation

Dell PowerEdge RAID Controller H700/H800 Technical Guide

Dell PowerEdge RAID Controller H700/H800 Transition Guide

Transitioning to 6Gb/s SAS - A Dell White Paper
